Quick Answer
For most grinding and polishing dust collection applications, the suitable system depends on the material being processed, dust particle size, spark risk, dust concentration, and capture method. Fine and dry grinding dust is often collected by a cartridge dust collector because it provides high-efficiency filtration in a compact structure. For single workstations, a downdraft table, backdraft hood, or portable dust collector may be used. For multiple fixed grinding or polishing stations, a central dust collection system is usually more practical.
Grinding and polishing processes may also generate sparks, abrasive dust, or combustible metal dust. In these cases, the system may require spark control, pre-separation, suitable filter media, or special safety design. If you are not sure which dust collector is suitable, you can send us your process, material, working points, and site layout for an initial equipment recommendation.
Common Dust Sources in Grinding and Polishing
Grinding and polishing dust can be generated from many surface finishing processes. The dust source, material type, tool speed, and working method will affect the dust particle size, spark risk, and required collection method.
Common dust sources include:

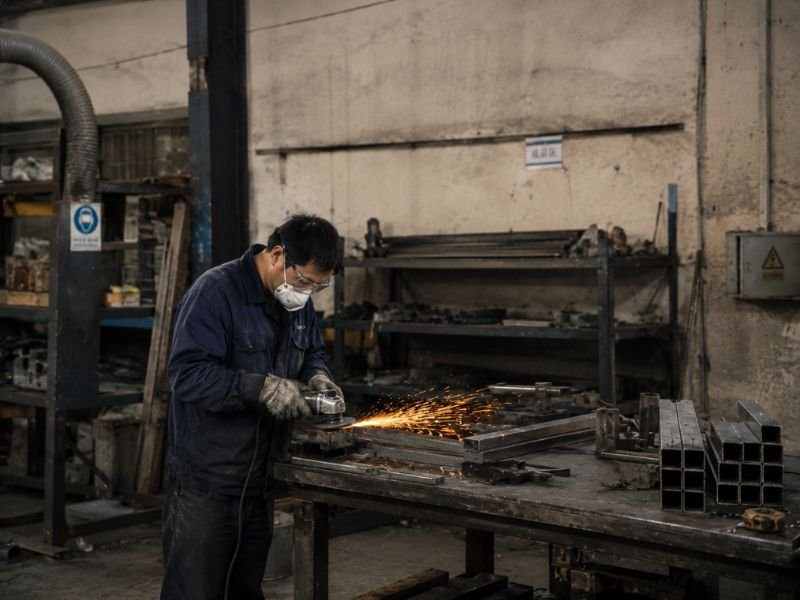

- Manual grinding stations using angle grinders or handheld tools.
- Polishing wheels for metal surface finishing.
- Belt sanding or belt grinding machines.
- Deburring operations after cutting, machining, or welding.
- Surface preparation before painting, coating, or assembly.
- Stainless steel, carbon steel, aluminum, or other metal finishing processes.
- Grinding areas combined with welding, cutting, or fabrication work.
- Multiple fixed workstations connected to a central dust collection system.
Because grinding and polishing dust may come from different tools and materials, the dust collection system should be selected according to the actual process, not only by the workshop size.
Why Grinding and Polishing Dust Is Difficult to Control
Grinding and polishing dust can be difficult to control because the dust is often fine, fast-spreading, and generated close to the operator. In metalworking applications, the process may also produce sparks, abrasive particles, and dust that can accumulate on machines, floors, and finished products if it is not captured properly.
Common challenges include:
- Fine dust particles that can remain suspended in the workshop air.
- Sparks or hot particles generated during grinding operations.
- Abrasive dust that may increase filter wear or damage ductwork over time.
- High dust concentration from continuous grinding or polishing work.
- Sticky residue from polishing compounds that may affect filter performance.
- Combustible metal dust risks, especially with materials such as aluminum, magnesium, or titanium.
- Multiple workstations that require balanced airflow and proper duct design.
For these reasons, a grinding and polishing dust collection system should be designed around the actual dust source, material type, capture distance, and safety requirements.
Recommended Dust Collection Equipment
The recommended dust collection equipment depends on the grinding process, material type, dust load, spark risk, and number of working points. For fine and dry grinding or polishing dust, a cartridge dust collector is often suitable because it provides efficient filtration and a compact structure. For heavy abrasive dust or larger particles, a pre-separator or cyclone may be used before the final dust collector to reduce direct filter wear.

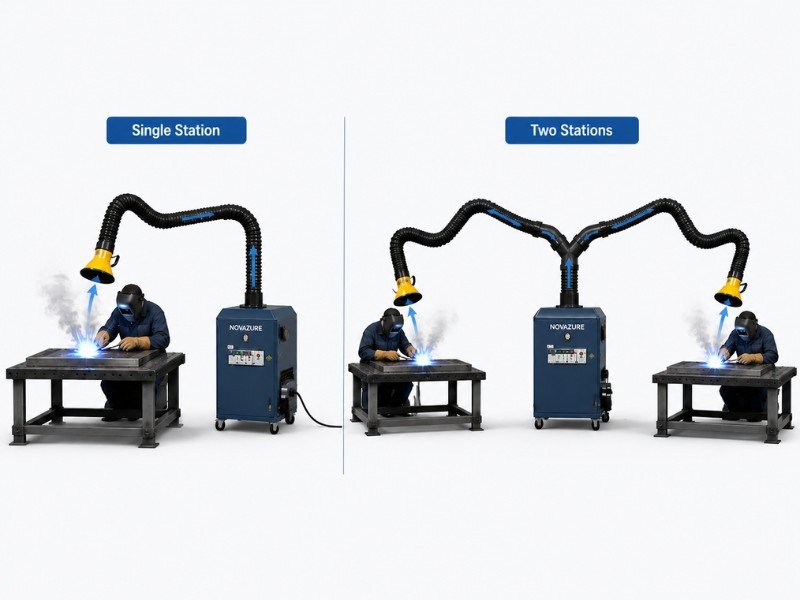

For single workstations, a downdraft table, local extraction hood, or portable dust collector may be used. For multiple fixed grinding or polishing stations, a central dust collection system is usually more practical.
| Working Condition | Recommended Equipment | Notes |
| Manual grinding station | Downdraft table or local extraction hood | Captures dust close to the workpiece. |
| Fine and dry grinding dust | Cartridge dust collector | Suitable for high-efficiency filtration. |
| Multiple fixed workstations | Central dust collection system | Connects several capture points to one dust collector. |
| Heavy abrasive dust | Pre-separator or cyclone + dust collector | Helps reduce direct filter wear. |
| Spark-generating work | Spark arrestor or pre-separation design | Helps reduce sparks entering the filter area. |
| Combustible metal dust | Special safety design or wet collection consideration | Depends on the material and risk assessment. |
In many grinding and polishing applications, the dust collector should be selected together with the capture method, spark control, filter media, airflow, and duct layout. A suitable system should not only filter the dust, but also capture it before it spreads into the workshop.
Dust Capture Methods for Grinding and Polishing
The capture method is critical for grinding and polishing dust control. If dust is not captured close to the source, fine particles can spread quickly and settle on machines, floors, and finished products. The best capture method depends on the workpiece size, tool movement, operator position, dust volume, and whether sparks are generated.
| Capture Method | Suitable For | Notes |
| Downdraft table | Small parts grinding and polishing | Captures dust from the work surface and helps keep the operator area cleaner. |
| Backdraft hood | Bench grinding or fixed workstations | Pulls dust away from the operator and toward the extraction point. |
| Side suction hood | Polishing wheels or belt sanding | Captures dust from the side direction near the dust source. |
| Enclosed booth | High dust generation or repeated work | Helps contain dust before it spreads into the workshop. |
| Flexible extraction arm | Occasional or flexible work areas | Easy to position near the grinding or polishing point. |
| Central duct system | Multiple fixed workstations | Connects several capture points to one dust collection system. |
For better dust control, the capture point should be positioned as close as practical to the dust source without affecting the operator’s work. In many workshops, a complete system may combine local hoods, downdraft tables, ductwork, and a central cartridge dust collector.
Key Factors for Selecting a Grinding and Polishing Dust Collection System
A grinding and polishing dust collection system should be selected according to the actual process and dust characteristics. The same type of dust collector may perform differently depending on the material, dust load, spark risk, capture method, and workshop layout. Before selecting equipment, it is important to review the key working conditions.
| Factor | Why It Matters |
|---|
| Material being processed | Steel, stainless steel, aluminum, magnesium, titanium, or other materials may require different safety considerations. |
| Dust particle size | Fine dust requires higher filtration efficiency and suitable filter media. |
| Spark generation | Grinding sparks may require spark control before dust enters the filter area. |
| Dust concentration | High dust load may require larger filter area or pre-separation. |
| Abrasiveness | Abrasive dust may increase wear on filters, ductwork, and system components. |
| Moisture or oil content | Sticky or oily dust may cause filter blockage and reduce filtration performance. |
| Number of workstations | Determines total airflow requirement and duct system layout. |
| Capture method | Downdraft table, hood, booth, or duct system affects airflow design. |
| Workshop layout | Duct distance, equipment location, and installation space affect pressure loss and fan selection. |
If you are not sure about the required airflow or equipment type, you can provide the grinding or polishing process, material, number of working points, dust condition, and site layout. These details help determine whether a cartridge dust collector, pre-separator, cyclone, or other dust collection solution is more suitable.
Typical Grinding and Polishing Dust Collection System Configuration

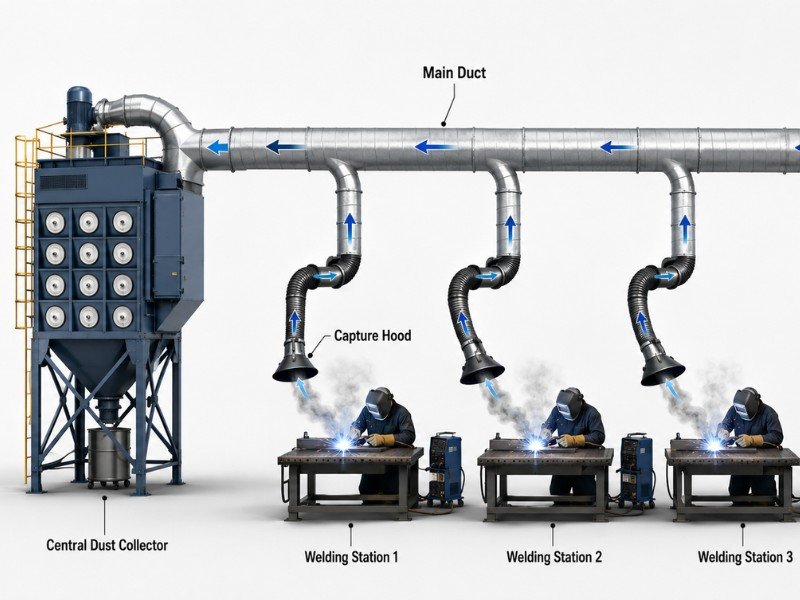

A grinding and polishing dust collection system can be configured according to the dust source, capture method, number of workstations, and safety requirements. For small work areas, the system may use a local hood, downdraft table, or portable dust collector. For multiple fixed grinding or polishing stations, the system usually requires a central dust collector, ductwork, fan, control cabinet, and proper capture devices.
A typical system may include:
- Dust collector body
- Filter cartridges or filter bags
- Pulse jet cleaning system
- Fan
- Electrical control cabinet
- Downdraft table, extraction hood, or suction arm
- Ductwork connection
- Spark arrestor, if required
- Pre-separator or cyclone, if required
- Dust drawer, hopper, or discharge valve
- Optional explosion-proof components, if required
The final configuration should be confirmed according to the actual material, dust load, spark risk, airflow requirement, and site layout. For abrasive or spark-generating dust, additional protection may be needed before the dust enters the filter area.
FAQ About Grinding and Polishing Dust Collection
What type of dust collector is best for grinding dust? For fine and dry grinding dust, a cartridge dust collector is commonly used because it provides high-efficiency filtration and a compact structure. If the dust is heavy, abrasive, or contains larger particles, a pre-separator or cyclone may be considered before the final dust collector to help reduce filter wear.
Is a cartridge dust collector suitable for polishing dust? A cartridge dust collector can be suitable for many polishing dust applications, especially when the dust is fine and dry. However, if polishing compounds create sticky residue, or if the dust contains oil or moisture, the filter media and cleaning method should be selected carefully to avoid filter blockage.
Do grinding dust collectors need spark protection? If grinding sparks or hot particles may enter the extraction system, spark protection should be considered before the dust reaches the filter area. Depending on the process, this may include a spark arrestor, pre-separation design, suitable duct layout, or other safety measures.
Should I use a downdraft table or a central dust collection system? A downdraft table is often suitable for small parts grinding, bench work, or single workstations. A central dust collection system is more suitable for multiple fixed grinding or polishing stations that need stable extraction from several capture points.
How much airflow is needed for grinding and polishing dust collection? The required airflow depends on the capture method, workpiece size, dust generation level, number of workstations, hood position, and duct layout. It should not be calculated only by workshop size. For a more suitable estimate, it is better to provide the process details and site layout.
Can a cyclone be used before the dust collector? Yes. For heavy or abrasive grinding dust, a cyclone or pre-separator can be installed before the final dust collector to remove larger particles and reduce direct filter wear. The need for pre-separation depends on dust load, particle size, and system design.
What information is needed for a grinding and polishing dust collection quotation? To recommend a suitable system, it is helpful to provide the material being processed, grinding or polishing method, number of working points, dust condition, spark risk, estimated airflow, workshop layout, and duct distance. If you are not sure about the exact airflow, you can send us your process and layout for initial review.
