Quick Answer
For most welding fume extraction applications, a cartridge dust collector is commonly recommended because welding fumes are usually fine, dry, and require high-efficiency filtration. For single welding stations or flexible working areas, a portable welding fume extractor can be a practical option. For multiple fixed welding points, robotic welding cells, or fabrication workshops, a central ducted welding fume extraction system is usually more suitable.
The right solution depends on your welding material, number of working points, fume concentration, capture method, airflow requirement, spark risk, and workshop layout. If you are not sure which welding fume collector or smoke extraction system is suitable, you can send us your working process and site information. Our team will help you recommend a practical dust collection solution.
Common Welding Fume and Smoke Sources
Welding fumes and smoke can be generated from different working points in a fabrication workshop. The fume source, welding material, and working method will affect the required capture method and dust collection equipment.
Common welding fume and smoke sources include:
- Manual welding stations where operators work close to the fume source.
- Robotic welding cells with repeated welding cycles and concentrated fume generation.
- Stainless steel welding, which may require careful fume capture and filtration.
- Galvanized steel welding, where fumes can spread quickly from the welding point.
- Carbon steel welding in general fabrication workshops.
- Welding areas combined with grinding, cutting, or polishing processes.
- Multiple welding points connected to a central extraction system.
For this reason, a welding fume extraction system should not be selected only by workshop size. The number of welding points, fume generation level, capture distance, and workshop layout should also be considered.
Why Welding Fumes Are Difficult to Capture
Welding fumes are often difficult to control because they are fine, hot, and easy to spread. Unlike heavy dust that may settle quickly, welding fumes can rise with thermal airflow and move through the workshop before they are captured. If the extraction point is too far from the welding source, fumes may remain in the worker breathing zone or spread to nearby work areas.
Common challenges include:
- Fine fume particles that require high-efficiency filtration.
- Hot rising airflow that carries fumes away from the welding point.
- Multiple welding stations that require balanced airflow and duct design.
- Poor hood or suction arm position that reduces capture efficiency.
- Sparks or hot particles that may require protection before filtration.
- Different welding materials, such as stainless steel or galvanized steel, that may require careful system selection.
A dust collector is only one part of a welding fume extraction system. Effective fume control also depends on source capture design, airflow calculation, duct layout, and proper equipment selection.
Recommended Welding Fume Extraction Equipment
Different welding workshops may require different fume extraction equipment. For fine and dry welding fumes, a cartridge dust collector is often used because it provides high filtration efficiency and a compact structure. For single or flexible welding stations, a portable welding fume extractor can be easier to move and position. For multiple fixed welding points, a central ducted extraction system is usually more practical.
| Working Condition | Recommended Equipment | Notes |
| Single welding station | Portable welding fume extractor | Suitable for flexible or occasional welding work. |
| Multiple fixed welding points | Cartridge dust collector with central duct system | Suitable for fabrication workshops with several welding stations. |
| Robotic welding cell | Enclosed hood or central extraction system | Helps capture fumes from repeated welding cycles. |
| Fine and dry welding fumes | Cartridge dust collector | Common choice for high-efficiency welding fume filtration. |
| Welding with spark risk | Spark arrestor or pre-separation design | Helps reduce the risk of sparks entering the filter area. |
In most industrial welding applications, the dust collector should be selected together with the capture method, airflow, duct layout, and fan configuration. A suitable welding fume collection system is not only about filtration efficiency, but also about capturing fumes as close to the source as possible.
Welding Fume Capture Methods
The capture method is one of the most important parts of a welding fume extraction system. Even if the dust collector has high filtration efficiency, poor source capture may still allow fumes to spread through the workshop. The best capture method depends on the welding position, workpiece size, operator movement, and number of welding points.
| Capture Method | Suitable For | Notes |

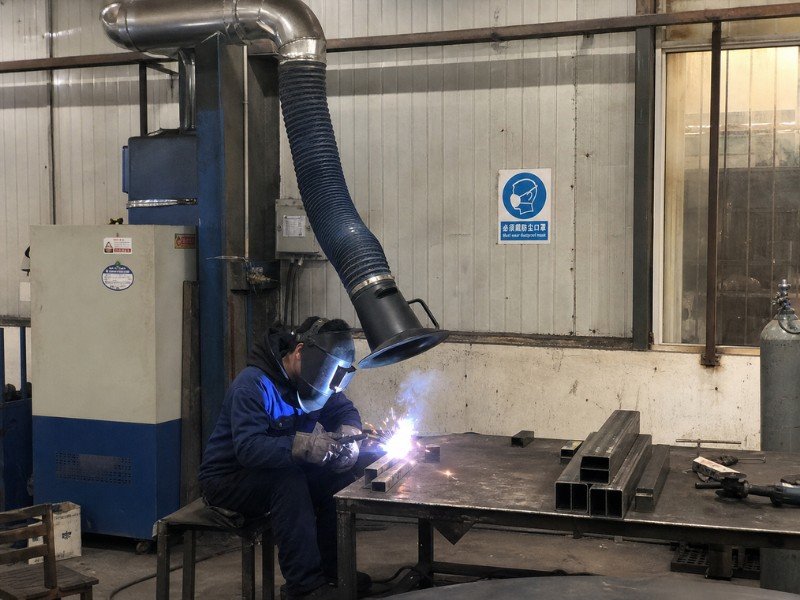

| Flexible suction arm | Manual welding stations | Easy to move and position near the welding point. |
| Local extraction hood | Fixed welding points | Suitable when the welding position is relatively stable. |
| Enclosed welding booth | Robotic welding or repeated welding work | Helps contain fumes before they spread into the workshop. |
| Central ducted extraction | Multiple welding stations | Suitable for workshops with several fixed welding points. |
| Downdraft table | Small parts welding or grinding | Captures fumes and dust from the work surface. |
| Push-pull ventilation | Large workpieces or open welding areas | Used when local source capture is difficult. |
For better fume control, the capture point should be as close as practical to the welding source without affecting the operator’s work. In many workshops, the final design may combine suction arms, hoods, ductwork, and a central cartridge dust collector to achieve stable extraction performance.
Key Factors for Selecting a Welding Fume Extraction System
A welding fume extraction system should be selected according to the actual working conditions, not only by the size of the workshop. The number of welding stations, welding material, capture method, airflow requirement, spark risk, and duct layout will all affect the final system design.
| Factor | Why It Matters |
| Number of welding stations | Determines the total airflow requirement and overall system layout. |
| Welding material | Stainless steel, galvanized steel, and carbon steel may generate different fume characteristics. |
| Capture method | Suction arms, hoods, booths, or central ducting will affect airflow design. |
| Working hours | Continuous welding requires stable filtration and reliable pulse cleaning. |
| Fume concentration | Higher fume load may require larger filter area or stronger extraction capacity. |
| Spark risk | Spark protection may be needed before fumes enter the filter area. |
| Workshop layout | Duct distance, equipment location, and installation space affect pressure loss and fan selection. |
If you are not sure about the required airflow or system configuration, you can send us your welding process, number of working points, dust condition, and workshop layout. Our team can help you estimate a suitable system direction before quotation.
Typical Welding Fume Extraction System Configuration
A typical welding fume extraction system can be configured according to the number of welding points, capture method, airflow requirement, and workshop layout. For small or flexible welding areas, the system may be simple. For multiple fixed welding stations, the system usually requires a central dust collector, ductwork connection, fan, control system, and suitable capture devices.
A typical system may include:
- Cartridge dust collector body
- Filter cartridges
- Pulse jet cleaning system
- Fan
- Electrical control cabinet
- Suction arms or capture hoods
- Ductwork connection
- Spark arrestor, if required
- Dust collection drawer or hopper
- Optional explosion-proof components, if required
The final configuration and supply scope should be confirmed according to the actual process and site layout. For example, some projects may only require the dust collector, fan, control cabinet, and short connecting duct, while larger central systems may need additional ductwork design, capture hoods, and safety options.
FAQ About Welding Fume Extraction Systems
What type of dust collector is best for welding fumes? For most fine and dry welding fumes, a cartridge dust collector is commonly used because it provides high filtration efficiency and a compact structure. For heavy dust load, special materials, or mixed processes such as welding and grinding, the system should be selected according to the actual dust condition and capture method.
Is a welding fume extractor the same as a welding dust collector? The terms are often used in similar applications, but they may refer to different system sizes. A welding fume extractor is often used for single stations or local extraction, while a welding dust collector may refer to a larger central system with ductwork, fan, filter cartridges, and control cabinet.
Should I use a portable welding fume extractor or a central fume collection system? A portable welding fume extractor is suitable for single welding stations, temporary work areas, or flexible production layouts. A central fume collection system is more suitable for multiple fixed welding points, robotic welding cells, or workshops that need stable extraction from several stations at the same time.
How much airflow is needed for welding smoke collection? The required airflow depends on the capture method, hood or suction arm position, number of welding points, duct layout, and fume generation level. It should not be calculated only by workshop size. For a more suitable estimate, it is better to provide the welding process, working points, and layout information.
Can general workshop ventilation replace source capture? General workshop ventilation can improve overall air exchange, but it may not effectively capture welding fumes near the source. For better worker protection and cleaner workshop air, source capture using suction arms, hoods, booths, or a ducted extraction system is usually more effective.
Do welding fume collectors need spark protection? If sparks or hot particles may enter the extraction system, spark protection should be considered before the fumes reach the filter area. Depending on the application, this may include a spark arrestor, pre-separation design, suitable duct layout, or other safety measures.
What information is needed for a welding fume extraction quotation? To recommend a suitable system, it is helpful to provide the welding material, number of welding stations, working hours, capture method, estimated airflow, workshop layout, duct distance, and any spark or safety requirements. If you are not sure about the exact airflow, you can send us your process details and layout for initial review.
