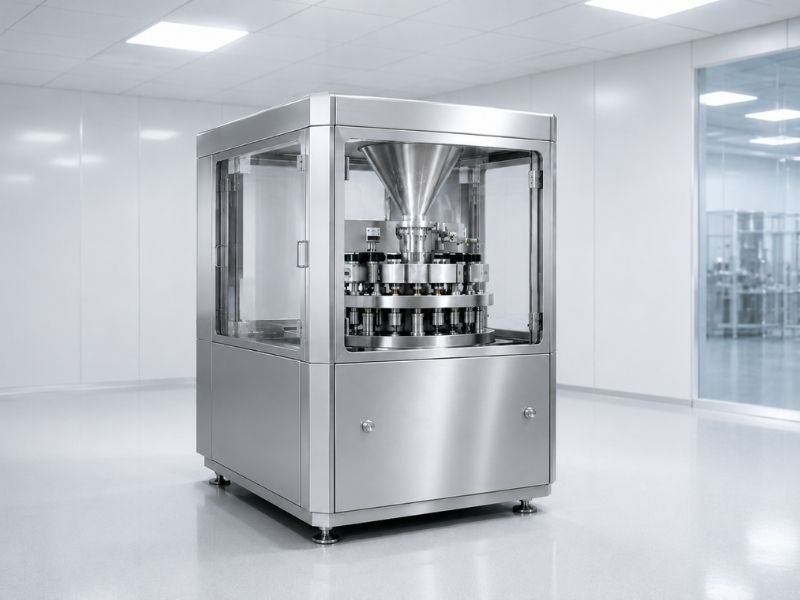

Where Dust Is Generated During Tablet Pressing
Tablet presses handle fine pharmaceutical powders through several stages of feeding, dosing, compression, and discharge. Dust may be released at different points around the machine, so effective extraction starts by identifying where powder can become airborne during normal production, product transfer, and equipment cleaning.
Follow the Powder Through the Machine
Dust extraction should be designed around the actual movement of powder through the tablet press. Feeding, dosing, compression, tablet discharge, and cleaning can create different release points, and each location may require a different capture approach.
Powder Feeding
Fine powder may become airborne while material is introduced into the tablet press hopper or transferred from upstream feeding equipment.
Feeder Area
Powder movement through the feeder and surrounding components can release fine particles around openings, connections, and transfer areas.
Die & Tooling Area
Residual powder around the die table, tooling, and filling zone may become dispersed during continuous machine operation.
Compression Zone
Fine particles and loose powder may be released around the compression area depending on the formulation, machine enclosure, operating speed, and equipment condition.
Tablet Discharge
Residual powder can be released as finished tablets leave the compression area and move through discharge chutes or downstream transfer equipment.
Cleaning & Changeover
Deposited powder may become airborne again when guards, tooling, feeders, or internal machine components are opened, removed, or cleaned between batches.
The most effective extraction points are usually located as close as practical to the actual powder-release locations while maintaining normal tablet press operation, access, product flow, and equipment maintenance.
Key Dust Capture Points for Tablet Presses
Effective tablet press dust collection depends on placing extraction close to the locations where powder is actually released. Capture points should control airborne dust without interfering with powder feeding, tablet compression, product discharge, machine access, or routine maintenance.
Capture Dust Close to the Source
A well-positioned extraction connection can often control dust more effectively than relying on excessive room airflow. The objective is to create controlled airflow toward the extraction point while maintaining normal machine operation and avoiding unnecessary disturbance of the pharmaceutical powder or finished tablets.
Feed & Hopper Connection
Powder enters the tablet press from a hopper, container, transfer system, or upstream feeding equipment.
Enclose the Transfer Point Where Practical
Use enclosed powder-transfer connections or localized extraction around openings where material can escape during hopper filling, charging, or transfer into the machine.
Powder Transfer
Connection sealing · Filling method · Transfer enclosure
Feeder Area
Fine powder moves through the feeder and filling system before entering the die cavities.
Use Localized Negative Pressure
Extraction should be positioned near feeder openings or manufacturer dust connections to draw escaped powder toward the collection system without pulling excessive product from the process.
Controlled Airflow
Capture velocity · Product loss · Existing machine ports
Die Table & Tooling Area
Residual powder can accumulate or become airborne around the die table, punches, tooling, and filling zone.
Capture Without Disturbing Compression
Locate extraction near the powder-release area while avoiding strong cross-drafts that could disturb die filling, affect powder movement, or interfere with the mechanical operation of the tablet press.
Process Stability
Die filling · Air direction · Equipment clearance
Machine Enclosure
Enclosed tablet presses may include dedicated extraction ports for controlling residual airborne powder within the machine housing.
Maintain Controlled Internal Negative Pressure
Existing machine extraction ports can be connected to the dust collection system and balanced to help keep airborne powder inside the enclosure from migrating into the surrounding production area.
Pressure Balance
Enclosure leakage · Port balancing · Machine requirements
Tablet Outlet & Dedusting
Residual powder may remain on finished tablets or be released where tablets leave the press and enter downstream handling equipment.
Capture Residual Powder at Discharge
Provide extraction around tablet discharge, dedusting equipment, or transfer points where loose powder can separate from the finished product and become airborne.
Product Discharge
Tablet outlet · Deduster · Downstream transfer
Keep Duct Runs Practical
Shorter and more direct connections can reduce unnecessary pressure loss and simplify balancing between extraction points.
Avoid Excessive Suction
More airflow is not automatically better. Excessive extraction can disturb powder movement or remove useful product from the machine.
Maintain Service Access
Extraction connections should allow access for tooling changes, inspection, cleaning, and routine tablet press maintenance.
Airflow & Static Pressure Considerations for Tablet Press Dust Collection
Tablet press dust collection should not be sized from a single generic airflow value. Required airflow depends on the machine extraction connections, number of capture points, operating conditions, duct layout, filtration resistance, and whether one or multiple tablet presses operate at the same time.
Do Not Size the System by CFM Alone
The dust collector and fan need to provide enough airflow at each extraction point after accounting for resistance through the ductwork, filtration system, fittings, and other components. A high airflow value alone does not guarantee effective source capture if the extraction points are poorly located or the system is not properly balanced.
Start with the tablet press connection requirements and capture points, then calculate the airflow and pressure needed for the complete extraction path.
Extraction Point Requirements
Airflow should reflect the number, size, and purpose of the tablet press extraction ports, including feeder, enclosure, die-area, discharge, or other machine connections.
Simultaneous Operation
When several tablet presses or extraction points operate simultaneously, the system should maintain suitable airflow across all active branches rather than simply adding equipment nameplate values without considering system balance.
Ductwork Resistance
Duct diameter, length, elbows, transitions, branches, dampers, flexible connections, and airflow velocity all contribute to system pressure loss between the tablet press and dust collector.
Filter & Collector Resistance
The fan must also overcome pressure drop through the dust collector, filter media, inlet and outlet sections, and the increasing resistance that can occur as dust loads on the filters.
From Capture Point to Fan Selection
The fan should be selected after the airflow requirement and total system resistance have been evaluated together.
Capture Points
Identify active extraction connections on the tablet press.
Required Airflow
Determine suitable airflow for the active machine connections.
Duct Pressure Loss
Calculate resistance through ducts, fittings, and branches.
Collector Resistance
Include pressure drop through the collector and filters.
Fan Selection
Select fan airflow and static pressure for the complete system.
Consider the Entire Air Path
For a more detailed explanation of airflow estimation, capture requirements, duct velocity, and system sizing, see our dust collection airflow calculation guide.
Dust Collection Airflow Calculation →Tablet Press Dust Characteristics That Affect System Design
Powder generated around a tablet press can vary significantly depending on the formulation, active ingredients, excipients, moisture sensitivity, particle size, and operating conditions. These characteristics can affect source capture, filter selection, cleaning performance, dust discharge, and the overall configuration of the dust collection system.
The Same Tablet Press Can Handle Very Different Powders
Collector selection should be based on the actual formulation rather than the tablet press alone. A dry, free-flowing powder may behave very differently from a cohesive, hygroscopic, potent, or combustible powder even when both materials are processed on similar equipment.
Fine Particle Size
Fine pharmaceutical particles can remain suspended in air and migrate through small openings around the tablet press if they are not captured close to the point of release.
Source capture · Filter efficiency · Airborne dust control
Low Bulk Density & Easy Dispersion
Lightweight powders can become airborne easily during feeding, compression, tablet discharge, equipment opening, and cleaning even when the total mass of released dust is relatively low.
Capture location · Airflow control · Enclosure pressure
Cohesive or Sticky Powder
Some formulations may adhere to internal surfaces, ductwork, filter media, hoppers, or discharge equipment and can become more difficult to remove during normal pulse cleaning.
Filter media · Cleaning method · Hopper and discharge design
Hygroscopicity
Moisture-sensitive powders can absorb humidity from the surrounding air, potentially increasing adhesion, agglomeration, filter loading, and difficulty during cleaning and dust discharge.
Moisture conditions · Filter loading · Cleaning performance
Potent API Content
Tablet press dust containing active pharmaceutical ingredients may require additional consideration for operator exposure, containment, filter handling, maintenance, and collected-dust management.
Containment · Maintenance access · Filter and dust handling
Combustibility
Some pharmaceutical formulations may present combustible-dust characteristics. The need for additional protection should be evaluated using actual material data, process conditions, and applicable site requirements.
Hazard evaluation · System configuration · Protection measures
Send Us the Actual Powder Information When Available
Material name, particle size, moisture sensitivity, bulk density, stickiness, API information, and combustible-dust data can help determine whether cartridge filtration, bag filtration, or another configuration is more appropriate for the tablet press application.
Recommended Dust Collector for Tablet Press Applications
Dust collector selection should reflect the actual pharmaceutical powder, dust loading, extraction-point layout, cleaning requirements, and operating conditions. For many tablet press applications involving dry and fine powder, we typically evaluate a cartridge dust collector first before considering other collector configurations.
Cartridge Dust Collector
For many tablet press applications handling dry and fine pharmaceutical powder, a cartridge dust collector is our preferred starting point. Pleated cartridges provide a large filtration area within a compact housing, which can be useful for dedicated tablet press extraction or small centralized systems serving several production machines.
Well suited to many dry and fine dusts generated around tablet press feeding, compression, and discharge areas.
High pleated filter area can be packaged within a relatively compact collector for local or nearby installation.
Can support dedicated machine extraction or multiple connected tablet press dust sources when properly sized and balanced.
Baghouse Dust Collector
A baghouse may be considered when the tablet production process generates higher dust loading, requires different filter-media properties, or handles powder conditions that are less suitable for cartridge filtration.
Higher dust loading · Different filter media · Continuous collection · Powder conditions unsuitable for cartridges
Portable Dust Collector
Portable or compact collectors can be considered for isolated tablet press areas, small production equipment, maintenance work, laboratory-scale processes, or applications where a central system is not required.
Single machine · Localized dust source · Small airflow · Flexible equipment layout
The tablet press does not determine the collector type by itself.
Sticky or hygroscopic powder, high dust loading, potent API content, combustible-dust characteristics, cleaning requirements, airflow, filtration targets, and maintenance strategy can change which dust collector configuration is most appropriate.
Typical Tablet Press Dust Collection System Configuration
A tablet press dust collection system combines source extraction, ductwork, filtration, airflow generation, dust handling, and controls. The exact arrangement should be adapted to the tablet press connections, number of machines, pharmaceutical powder characteristics, production layout, and site requirements.
Design the Complete Air Path, Not Just the Dust Collector
Effective extraction depends on how the tablet press, extraction connections, branch ducts, main duct, collector, fan, and final air path work together. A properly selected dust collector cannot compensate for poorly positioned capture points or an incorrectly sized duct and fan system.
Tablet Press
Dust is generated around feeding, compression, enclosure, tooling, tablet discharge, and other machine areas.
Dust SourceExtraction Connections
Machine ports or localized capture points draw airborne powder toward the dust collection system.
Source CaptureBranch Duct
Individual extraction connections transport collected air from the tablet press into the main duct network.
Airflow BalancingMain Duct
Combined airflow is conveyed toward the dust collector while maintaining suitable velocity and system pressure balance.
Velocity + Pressure LossDust Collector
Pharmaceutical powder is separated from the airflow using the filtration technology selected for the actual material and process.
Cartridge · Baghouse · Other Explore Cartridge Collectors →Centrifugal Fan
The fan provides the airflow and static pressure required to move air through the complete extraction and filtration system.
Airflow + Static PressureClean Air Discharge
Final air discharge or additional filtration is determined by process, filtration, site, and project requirements.
Final Air HandlingAdditional Components Depend on the Application
Not every tablet press extraction system requires the same accessories. Supporting components should be selected according to the powder, filtration requirements, maintenance strategy, operating conditions, and site requirements.
Pulse-Jet Cleaning
Automatic compressed-air cleaning helps remove accumulated dust from suitable filter elements during operation.
Differential Pressure Monitoring
Pressure-drop monitoring provides useful information about filter loading and cleaning performance.
Dust Hopper & Discharge
Collected pharmaceutical powder can be discharged into a suitable bin, valve, container, or project-specific dust-handling arrangement.
Control Panel
Controls can coordinate fan operation, pulse cleaning, monitoring, alarms, and other dust collection system functions.
HEPA Final Filtration
An additional final filtration stage can be considered when required by the specific application or project requirements.
Explosion Protection
Additional protection should be evaluated when actual material data and process conditions indicate a combustible-dust hazard.
One Tablet Press Does Not Always Mean One Dust Collector
A single tablet press may use a dedicated collector, while several machines may share a centralized extraction system. The final layout depends on machine quantity, simultaneous operation, production separation, duct routing, powder characteristics, and maintenance requirements.
Local vs Central Dust Collection for Tablet Presses
Tablet presses can be connected to dedicated local collectors or to a centralized dust collection system serving multiple machines. The most suitable arrangement depends on the number of tablet presses, production separation, simultaneous operation, duct layout, powder characteristics, maintenance strategy, and site conditions.
Local / Dedicated Dust Collection
A dedicated collector serves one tablet press or a small number of nearby extraction points. This arrangement can provide greater separation between machines, products, production rooms, or batches.
One tablet press connected to one nearby collector, or a compact system serving a limited group of machine extraction ports.
Shorter duct runs, independent operation, easier machine isolation, simpler balancing, and greater flexibility when production layouts change.
Multiple collectors may require separate filter maintenance, dust discharge, compressed air, electrical controls, and installation space.
Dedicated extraction can make it easier to keep individual tablet presses, products, batches, or production areas separated.
Single machines · Separate production rooms · Short duct runs · Frequent process changes · Greater equipment isolation
Central Dust Collection System
A central system connects several tablet presses or production extraction points through a shared duct network and processes the collected air through a common dust collector, fan, and control system.
Multiple tablet presses or related pharmaceutical machines connected through branch ducts to one centralized collection system.
Centralized filtration, common dust discharge, coordinated controls, fewer collector units, and potentially simpler maintenance at one central location.
Duct balancing, static pressure, simultaneous operation, zoning, branch control, production separation, and maintenance shutdown strategy require careful engineering.
Shared systems require additional consideration when different products, powders, batches, or process areas should remain separated.
Multiple machines · Stable layouts · Common maintenance · Centralized dust handling · Coordinated production systems
Six Factors We Compare
The decision should be based on how the tablet press production area actually operates rather than assuming that local or central extraction is always the better option.
Number of Tablet Presses
One machine may favor a dedicated system, while several nearby machines can make centralized extraction more practical.
Simultaneous Operation
The system should maintain suitable airflow when multiple machines and extraction branches operate at the same time.
Product & Batch Separation
Different products or batches may require greater separation when evaluating shared ductwork and collection equipment.
Duct Length & Pressure Loss
Longer central duct networks can increase resistance and require more careful branch balancing and fan selection.
Maintenance Strategy
Compare centralized filter maintenance with the flexibility of servicing individual collectors without affecting other machines.
Future Production Changes
Expansion plans, machine relocation, new products, and changing room layouts can influence which configuration offers more long-term flexibility.
There Is No Universal Best Configuration
A dedicated cartridge dust collector may be practical for one tablet press, while a larger pharmaceutical facility may benefit from a centralized system serving several machines. The final arrangement should be selected around production separation, airflow demand, powder characteristics, duct routing, maintenance, and site conditions.
Information Needed for Tablet Press Dust Collection Design
You do not need to calculate the complete dust collection system before contacting us. Basic information about the tablet press, pharmaceutical powder, operating conditions, and installation site is usually enough for us to begin a preliminary engineering review and identify the next data required for system selection.
You Do Not Need to Know the CFM Before Contacting Us
If airflow and static pressure have already been calculated, we can use those values as part of the review. If they are not available, tablet press model information, extraction connections, machine quantity, powder characteristics, operating conditions, and site layout can provide a practical starting point for preliminary system design.
Machine model + quantity + powder information + operating schedule + installation layout are often enough to begin the first engineering discussion.
Tablet Press Information
Machine information helps identify existing extraction ports, connection sizes, airflow requirements, and how the tablet press should connect to the dust collection system.
Powder & Dust Information
Powder characteristics influence filtration technology, filter media, cleaning performance, dust handling, and any additional containment or hazard considerations.
Operating Conditions
Production schedules and simultaneous machine operation influence total airflow demand, system balancing, fan selection, and whether a local or central system is more practical.
Site & Installation Information
Installation conditions affect equipment footprint, duct routing, electrical configuration, access requirements, and the final system arrangement.
From Tablet Press Data to System Configuration
These project inputs help us determine the main engineering parameters required for a preliminary dust collection system recommendation.
Required Airflow
Static Pressure
Collector Type
Filter Media
Fan Selection
System Layout
Send the information you have — we can identify what is still needed.
A machine nameplate, equipment drawing, production layout, powder data sheet, or even basic operating information can help us begin the review. Missing engineering parameters can then be confirmed step by step during the system-design process.
Tablet Press Dust Collection Guides & Resources
Explore additional guidance on pharmaceutical dust collector selection, airflow calculation, filtration technology, and system design for tablet press and fine-powder applications.
How to Choose a Dust Collector for Pharmaceutical Manufacturing
Review the main engineering factors that influence dust collector selection for pharmaceutical processes, including powder characteristics, dust loading, filtration technology, airflow, cleaning requirements, and system configuration.
Cartridge Dust Collector for Pharmaceutical Powder
Learn when cartridge filtration is suitable for dry and fine pharmaceutical powder and which powder characteristics may require a different filtration approach.
Read the Cartridge Guide →How to Calculate Airflow for Dust Collection Systems
Understand the basic airflow, capture, duct velocity, pressure-loss, and fan-selection considerations used when sizing industrial dust collection systems.
Read the Airflow Guide →Baghouse vs Cartridge Dust Collector
Compare cartridge and baghouse filtration based on powder characteristics, dust loading, filter area, equipment footprint, cleaning, and operating conditions.
Compare Baghouse vs Cartridge →
